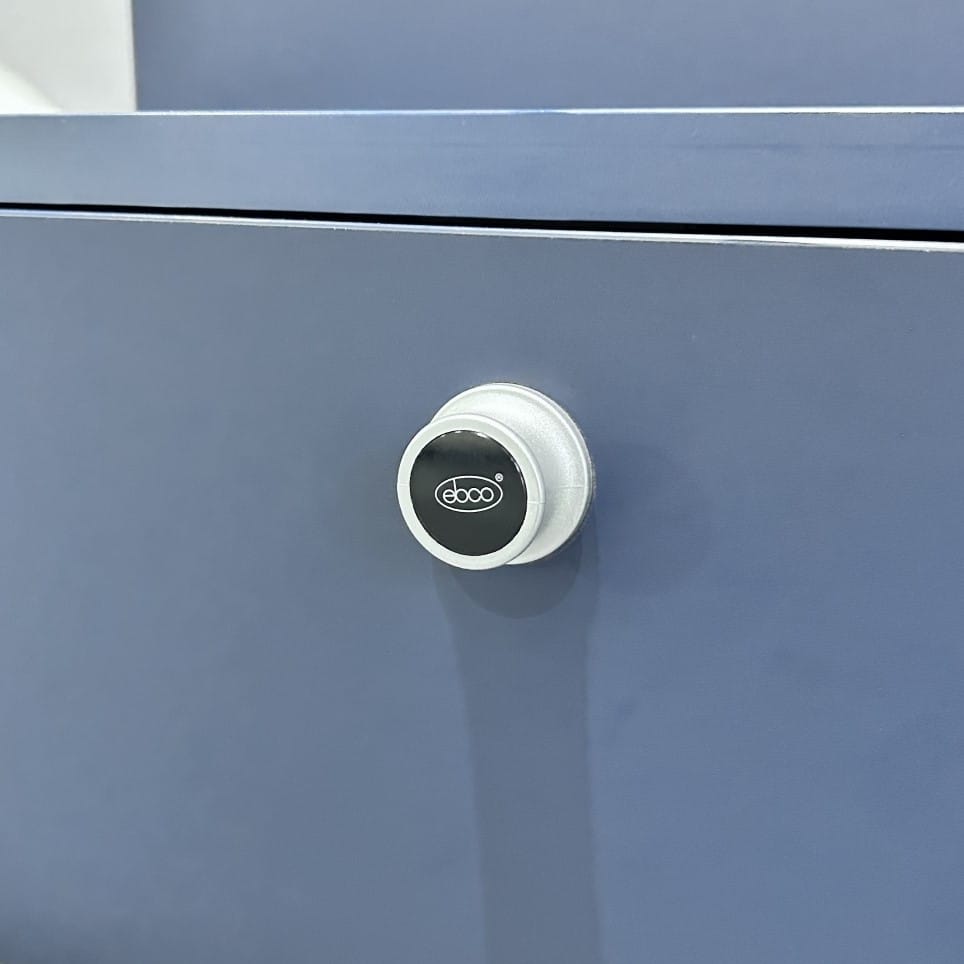

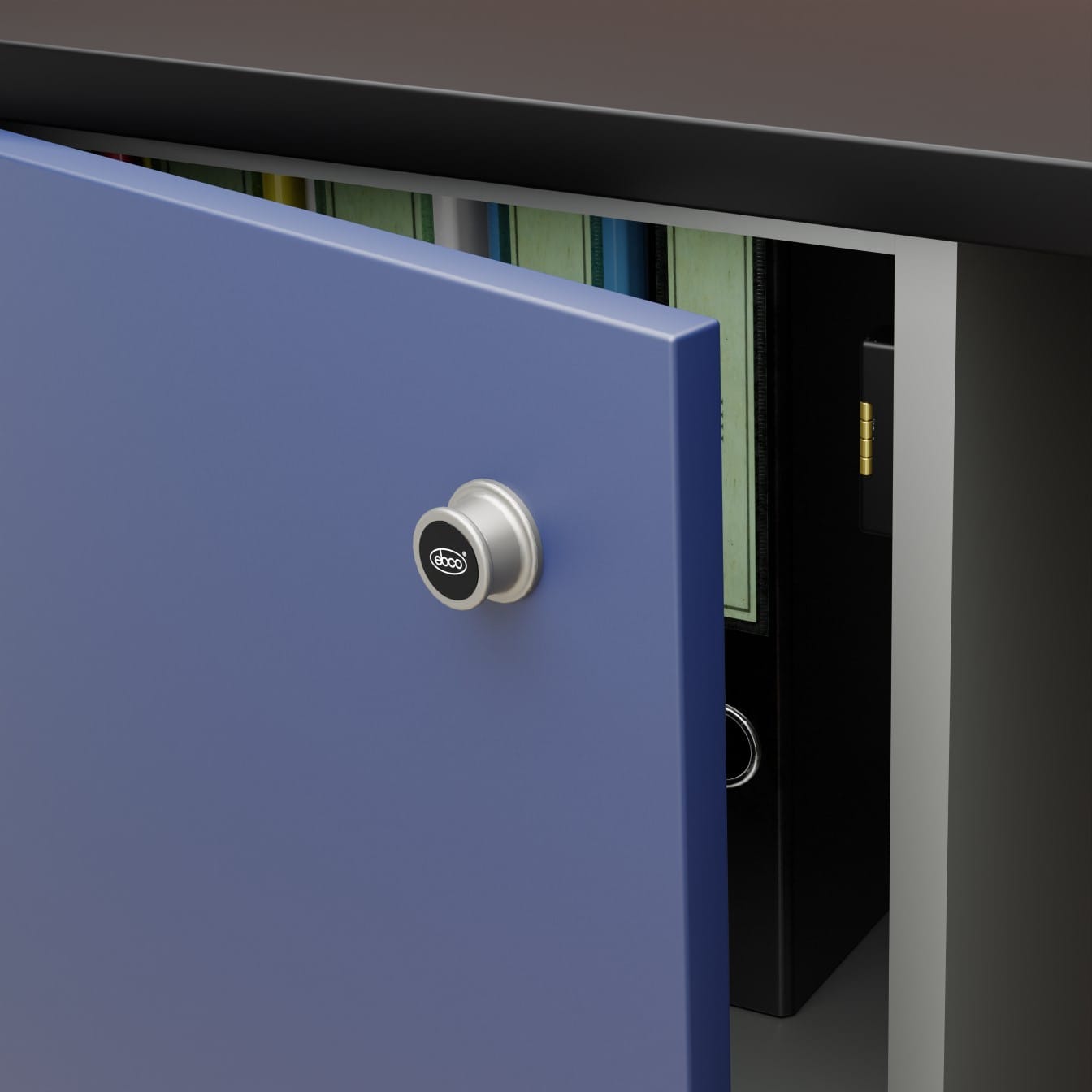

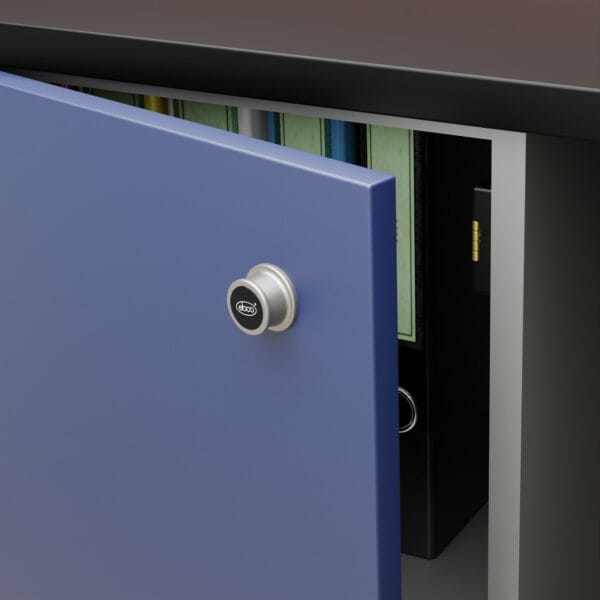

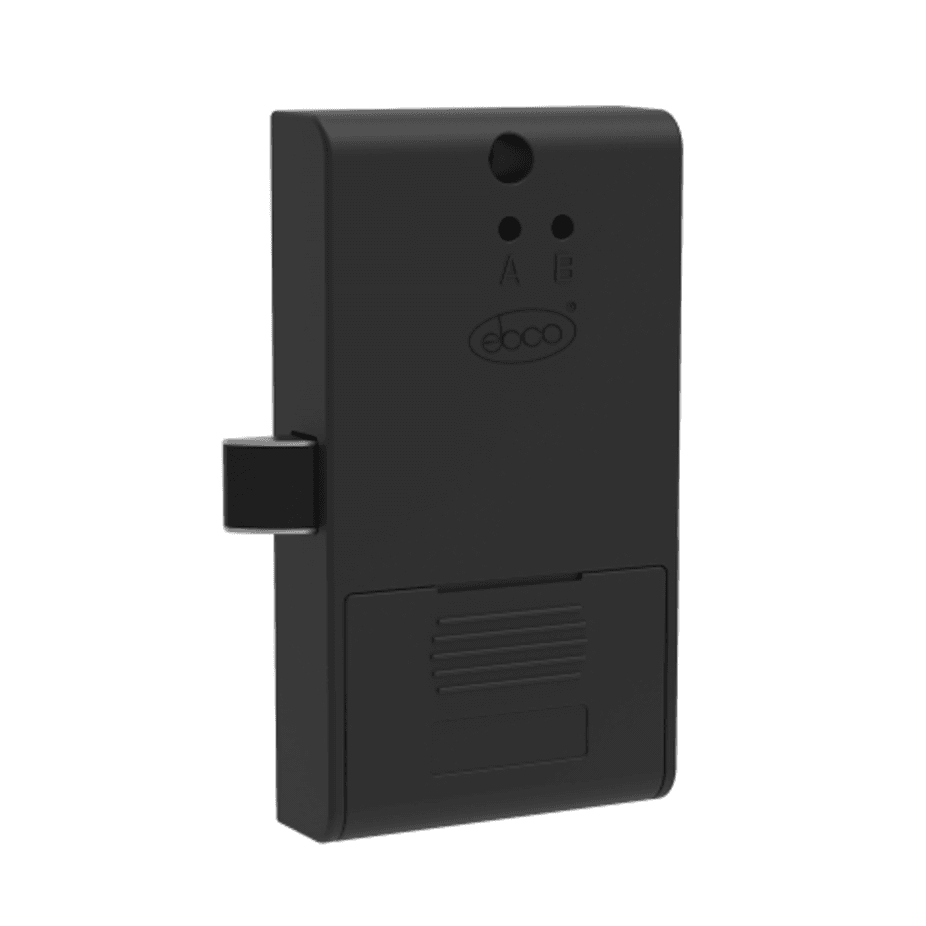

ESmart Digital Lock – Cabinet 1P – RFID

Description

• Easy to program – no need for software or PC
• Automatic on lock function
• Easy to install
• For shutter thickness: 15 – 22 mm
• Frequency: 125KHz
• Working current: 180mA ~ 280mA
• Working temperature: 0°C ~ 40°C
• Working voltage: 4.5V
• Working humidity: 20% ~ 80%
• ABS front case and lock housing
• Function mode:
  • Manual close mode
  • Automatic close mode
  • Public user mode
• Function card:
  • Management (Programming) Card – is used to create user card
  • User card – is the key of the lock
• The same RF can be shared by all the locks
• Power Supply:
  • 3 standard AAA alkaline batteries (not included)
