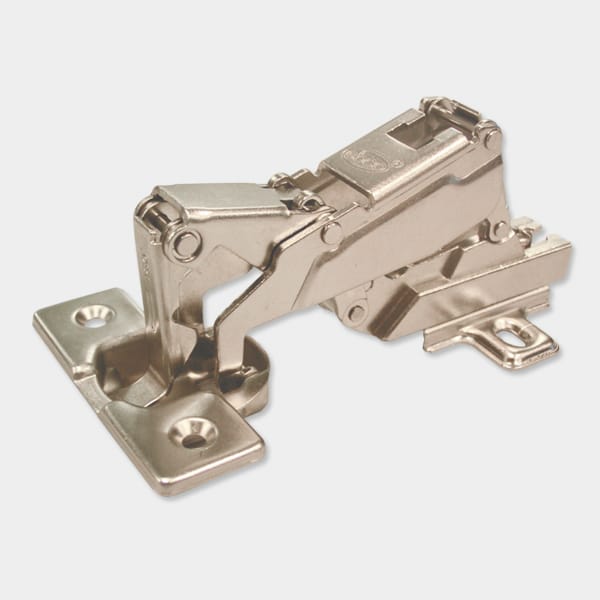

165° Hinge (I)

Description

• Heavy duty cupboard hinges.
• Spring loaded with ‘Auto-Closing’ feature.
• 165° opening angle.
• Max shutter size 2135mm x 600mm (85″ x 24″) for 2 hinges.
• Shutter thickness:16mm to 26mm.
• Adjustments for gap and pivot angle.
• ‘System 32’ compatible.
• Available in 2 models – Overlay & Half Overlay.
• Shutter Cavity: Ø35mm, 12mm deep, 4mm from edge.
• Finish: Nickel plated.
