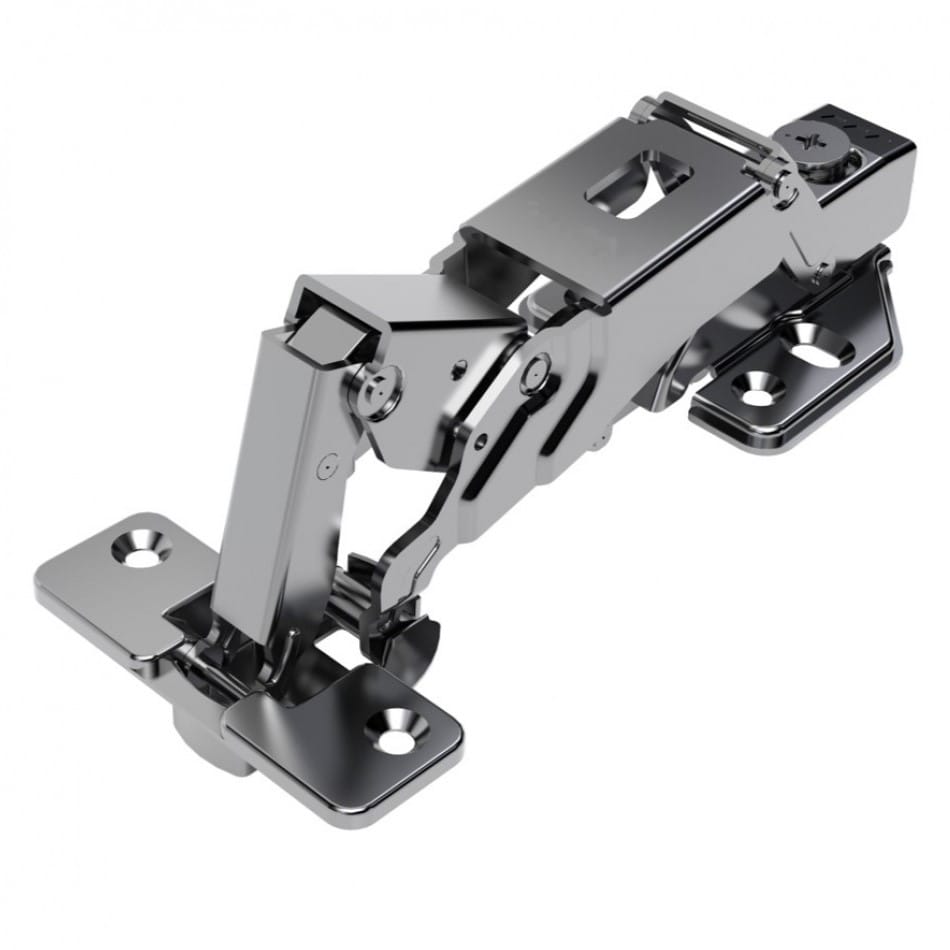

155° Hinge – Zero Protrusion (Soft Close)
₹0.00
155° ZERO PROTRUSION hinge ensures clear/ non-obstruct opening of the cabinet door. Specially designed for the cabinets that house drawers. Available for Overlay & Half-overlay door applications. Max. opening: 155° Soft-closing mechanism allows gentle closing of the cabinet door. Shutter cavity: Ø35mm, 11.5mm deep Shutter thickness: 14-24mm Cabinet side panel thickness: 17-21mm Finish: Nickel plated
Out of stock
Description
- 155° ZERO PROTRUSION hinge ensures clear/ non-obstruct opening of the cabinet door.
- Specially designed for the cabinets that house drawers.
- Available for Overlay & Half-overlay door applications.

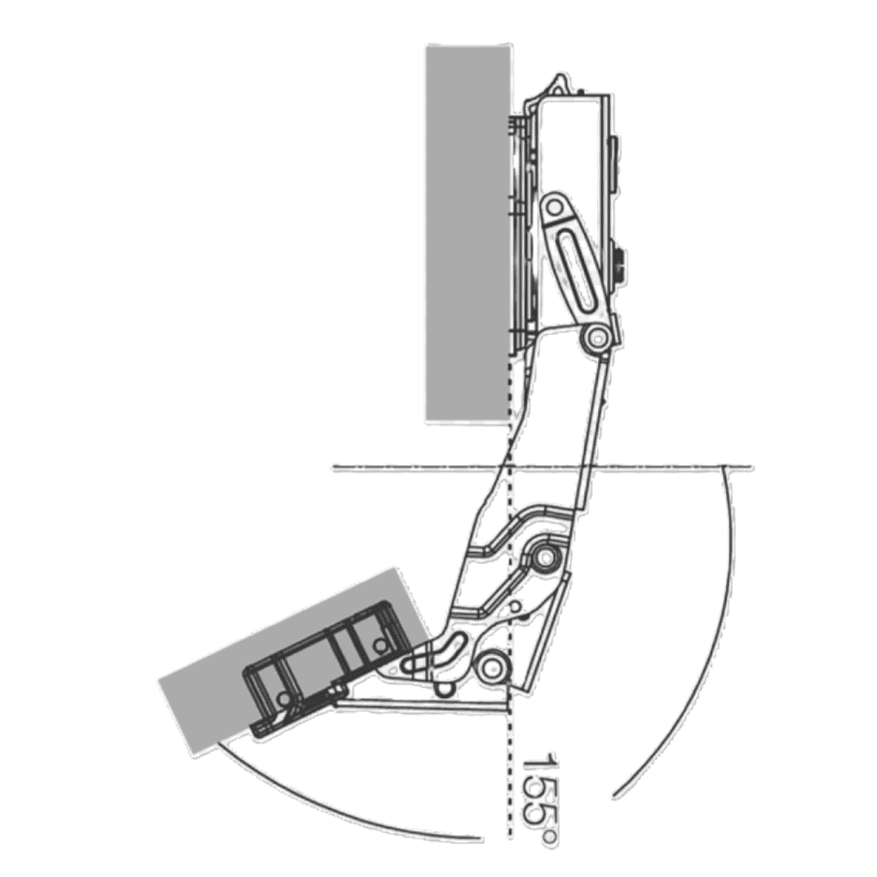

- Max. opening: 155°
- Soft-closing mechanism allows gentle closing of the cabinet door.
- Shutter cavity: Ø35mm, 11.5mm deep
- Shutter thickness: 14-24mm
- Cabinet side panel thickness: 17-21mm
- Finish: Nickel plated
